	New Equipment (Never Installed) Available for Immediate Shipment Stock in Shreveport, LA

System originally designed to feed and transport 25 TPH of dry wood, ½” minus particle size, with a material bulk density of 11 to 15 lbs./ft³. Sized with 8 5/8” OD X ¼” wall pipe, having a horizontal pipe length of 200’, a vertical pipe rise of 25’ with two (2) 90 degree elbows and two (2) 15 degree elbows. System calculated to operate at 3.72 PSI with an air volume of 2,695 ACFM.

If your application is different, Clarke’s can run a system calculation to determine if this equipment will meet your needs.


	Click icon to Download HP System Piping PDF Drawing


	8 5/8” Diameter Pipe and High Pressure Flatback Elbows:


	High Pressure Pneumatic Material Relay System

	High Pressure Blower Package

	Material Collection Screw Conveyor

	Material Feed Screw Conveyor

	Machined Rotary Feeder

	Machined Rotary Airlock

	4’ - 6’ Diameter Long Cone High Pressure Cyclone

	8-5/8” Diameter Pipe and High Pressure Flatback Elbows

	11” Diameter Pipe and Low Pressure Fittings

One (1) lot 8 5/8” Diameter Pipe and High Pressure Flatback Elbows consisting of the following:

Five (5) lengths X 40’ long 8 5/8” diameter X ¼” wall pipe with plate flanges.
One (1) length X 30’ long 8 5/8” diameter X ¼” wall pipe with plate flanges.
Two (2) 8 5/8” diameter X 90 degree flatback elbows with offset discharge transitions.
Two (2) 8 5/8” diameter X 15 degree flatback elbows with offset discharge transitions.
Miscellaneous pipe supports.




		11” Diameter Pipe and Low Pressure Fittings:

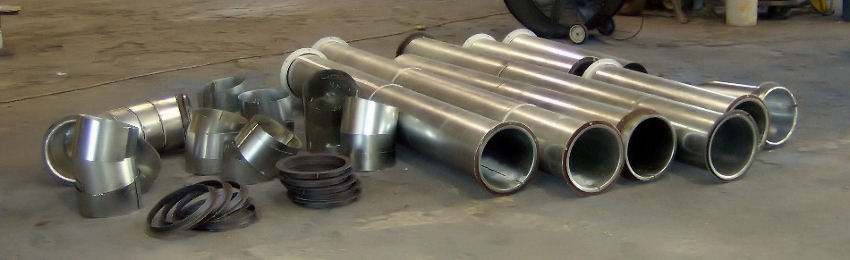

	One (1) lot of 11” Diameter Pipe and Low Pressure Fittings consisting of the following: Two (2) lengths X 10’ long 11” diameter X 14 gauge galvanized pipe. Two (2) lengths X 8’ long 11” diameter X 14 gauge galvanized pipe. Three (3) lengths X 4’ long 11” diameter X 14 gauge galvanized pipe. Five (5) 11” diameter X 90 degree X 14 gauge galvanized elbows with 2.0 centerline radius.
